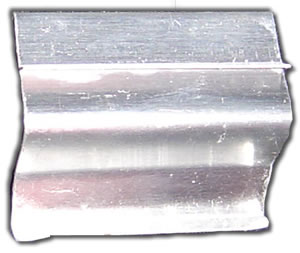

PERMAJTAB

Locking Tabs for J Channel
Eliminate Your J Channel Problems

Permajtab is a 'sister' piece to the Permatab and is for use in J Channel. Permajtab is fastened onto the last panel of vinyl exactly as the permatab, and then it is snapped into J Channel. Applicators do not have to furr in behind the panel because the Permajtab has an extension or "foot" that holds the panel out against the J Channel. Previously, applicators would use wood, insulation or scrap siding to furr out, but this is no longer necessary with the aluminum Permajtab.

J Channel Solution :
Permajtabs are the solution to locking cut panels in J Channel in a professional manner.
They save installation time and create a permanent lock.
Proven Product:
Permajtabs have been used successfully on thousands of jobs by contractors nationwide. They have become the preferred method for locking cut panels in J Channel.
Cost Effective:
Permajtabs increase production and save money by eliminating the need to build up behind panels and reduce customer complaints and costly call backs.
Permanent Application:
Permajtabs survive the life of siding with no deterioration or stains. Permajtabs allow siding or soffit panels to float or adjust to weather conditions while remaining locked in the J return and eliminating fall outs or buckling.
Sepcifications:
Crafted of Aluminum
Fits 1/2", 5/8" or 3/4" J Channel
Adjust size by gently applying pressure on bottom section for desired fit
Crimps on siding or soffit panels like Permatab
Crimp with Malco SL1 or SL2 Cripmer
Snaps into J Channel
Easy Installation:
No furr out required.
After crimping Permajtabs to siding or soffit panels, just snap into place. The unique spring-like action of Permajtab secures the panel while allowing to flex as needed.
  1. Insert Permajtab over cut edge of panel in 12-24" intervals as desiered.
  2. Crimp center of Permajtab 1/4" into panel using Malco SL1 or SL2 crimper.
  3. Snap panel into J Channel using firm upward motion.
Applications for PermaJTab
Secure the last panels
in porch ceilings
Secure panels
under extended windows
Vertical siding
(corners, windows)

We recommend the application of Permajtab every 12" to 24" as needed.
Ask your local distributor for permaclip or call us for the location nearest you.

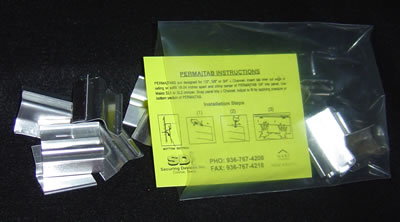

One bag of Permajtab contains 50.
